filtration & BREATHER Panels
Prefiltration Upgrade kit: Water Separator & Oil Coalescing Filter (Comes with mounting bracket and drain fittings/tubes)
Tsunami Pre-Filters System is a performance upgrade solution to any existing spray foam or coating rig's compressed air system. Machined from the highest quality materials & anodized inside and out to ensure ultimate durability againsts trapped contaminates.
Patented Designed Oversized tube length allows both gravity & velocity to assist in removal of air contaminates. Water separator is filter-free tube saving you replacement costs. Removable bottom cap provides ease of service.
Water Separators removes bulk water and water droplets up to 1 quart per minute and filters particulate down to 10 micron. Oil Coalescing Filters removes oil aerosols down to .001 ppm and traps particulate down to .01 micron. Option to Add the "Activated Carbon Filter" prior to your "D-Grade Filtration Panel" removes oil vapor down to .003 ppm, removing odor and taste from the air.
Reduce Oil and Contaminates will Maximize the efficiency of your dryer with
Technology Worth Investing In!
SIZING & ORDERING INFORMATION
Knock out the water and contaminates for cleaner air supply!
Max CFM 50 Item: SKU: 21999-0251 Port Size 1/2" Drain Type: Float Max PSI : 250 Max F: 120F Weight: 9 1/2lbs
Max CFM 120 Item: SKU: 21999-0252 Port Size 1" Drain Type: Float Max PSI : 250 Max F: 120F Weight: 14lbs

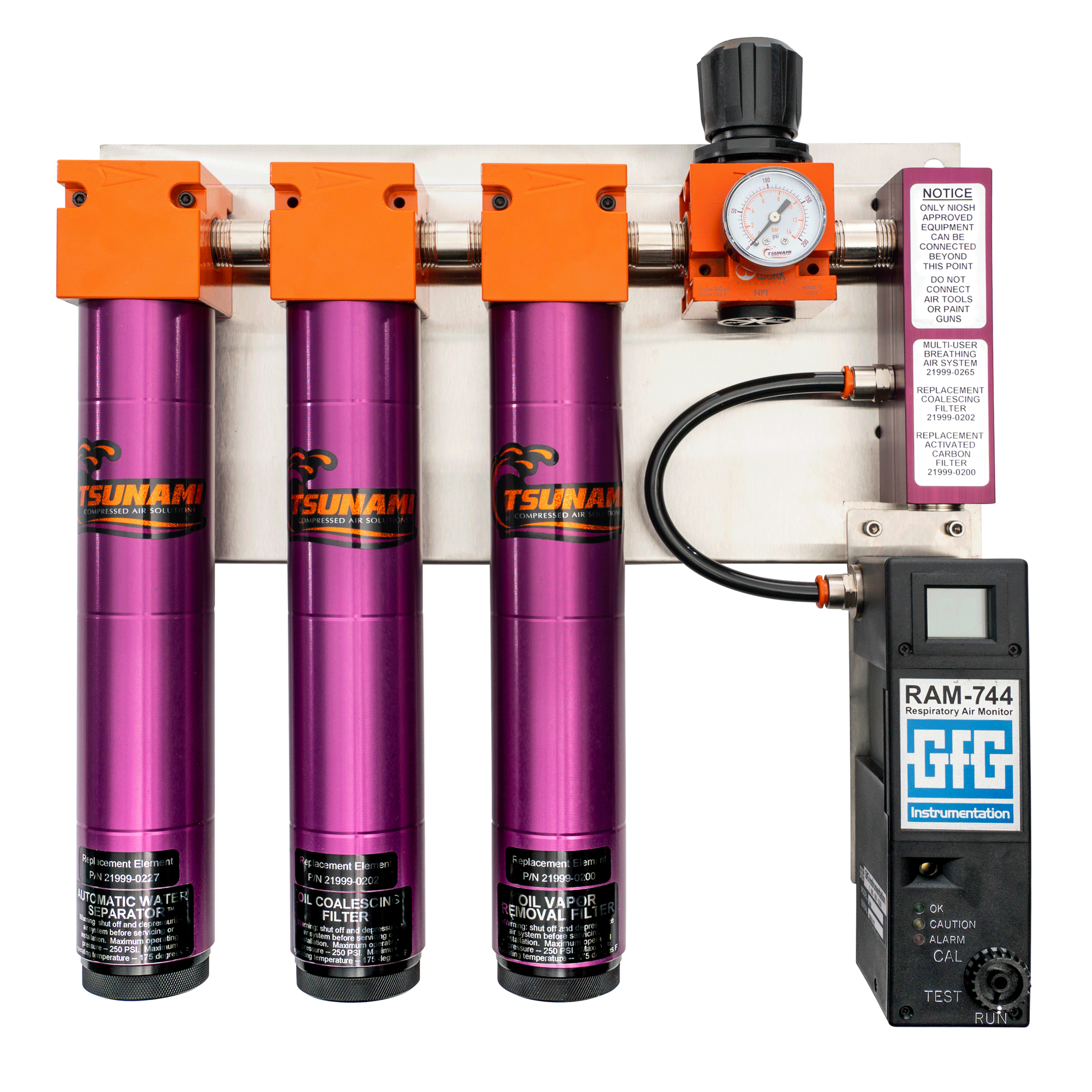

TSUNAMI BREATHER PANELS MEETS OSHA REQUIREMENTS FOR GRADE D BREATHING AIR QUALITY
Tsunami Reduces your on-going maintenance cost by reducing the filters from three down to only two!
Available in single or multi-user systems
Single-user System $2,650.00 Cdn.
Multi-User System $3,750.00 Cdn.
Note: Hoses and Hoods must be from the same manufacturer for US NIOSH and OSHA Compliance!
You MUST follow all your state, provincial and local rules and regulations! Purchaser has sole responsibility that the purchased system meets their local and state requirements!
